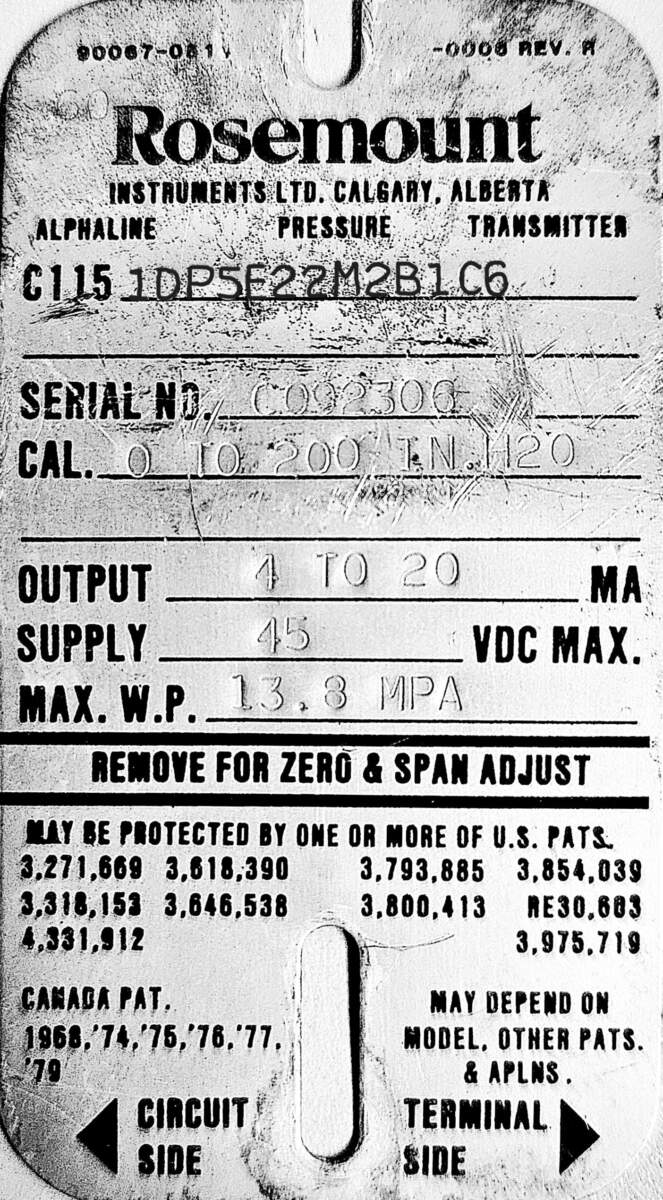

PRESSURE TRANSMITTER – EMERSON – ROSEMOUNT™ – SERIE 1151 – MODEL C1151DP5E22M2B1C6
Additional information
| Condition | |
|---|---|
| Manufacturer | |
| Modele | |
| Site |
ROSEMOUNT 1151 TRANSMITTER MODEL NUMBERING :
- TRANSMITTER TYPE FOR MODEL 1151DP : GAGE PRESSURE TRANSMITTER
- PRESSURE RANGES TYPE 5 : 750 inH2O | 186.4 kPa
- TRANSMITTER OUTPUT TYPE E : 4–20 mA, LINEAR WITH INPUT
- LCD DISPLAY : M2 ANALOG SCALE, SQUARE ROOT METER, 0–100% FLOW
- MOUNTING BRACKET TYPE B1 : BRACKET, 2-IN. PIPE MOUNT
- PRODUCT CERTIFICATIONS TYPE C6 : CSA EXPLOSION-PROOF, INTRINSICALLY SAFE
MATERIAL OF CONSTRUCTION TYPE 22 :
- FLANGES/ADAPTERS : 316 SST
- DRAINS/VENTS : 316 SST
- DIAPHRAGMS : 316L SST
- FILL FLUID : SILICONE
